GONDOLA SHELVING

Description

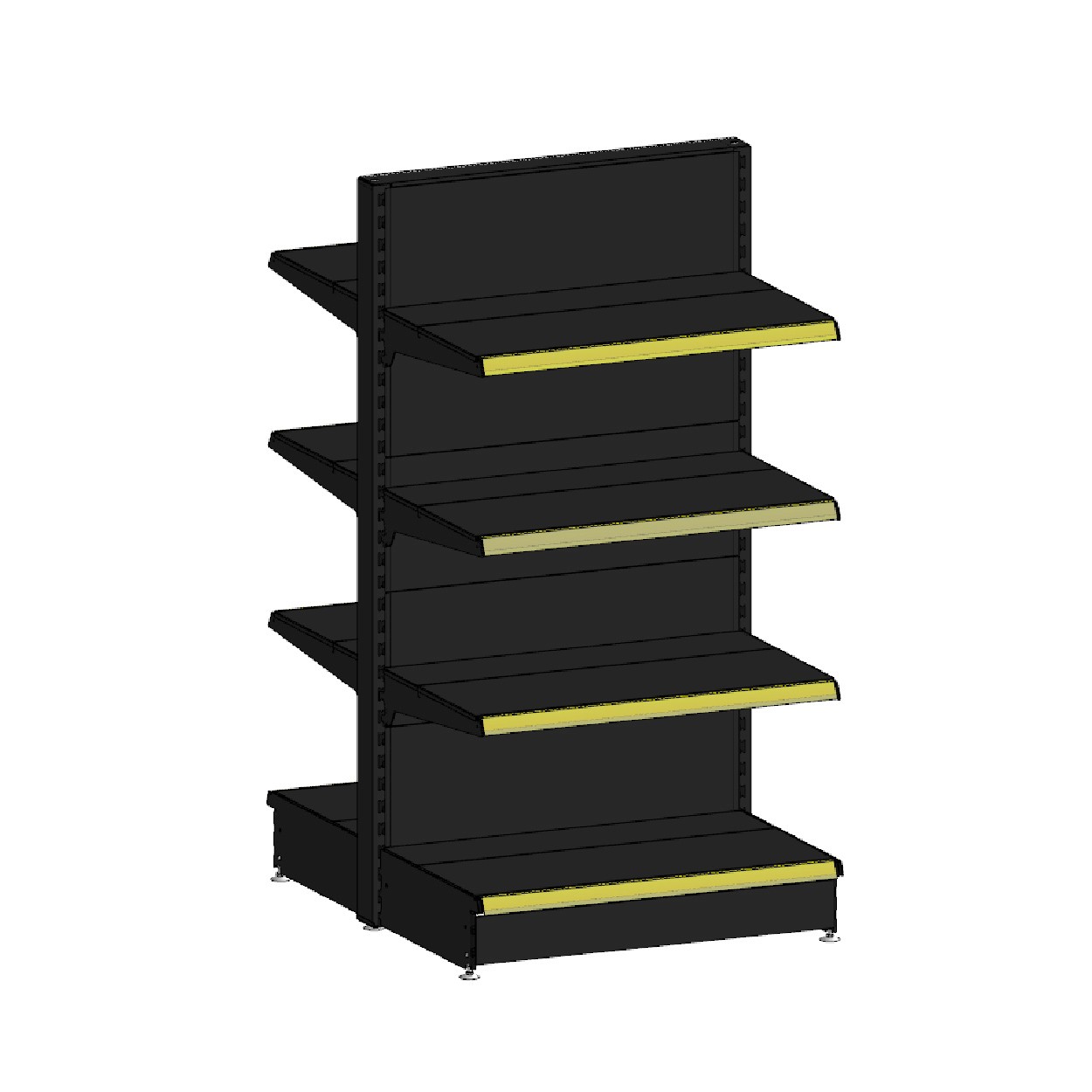

Gondola retail shelving also called island shelving unit or double sided shelf is used for merchandising the center portion of your store.
It is designed to joined together in rows to make aisles.

Each gondola unit is freestanding and is supplied with a base shelf on both sides.Available in a wide range of conﬁgurations,either with
upper shelves or with pegboard back panels for hanging items.Shelves are supplied for free with price holders in four colors to choose.
Gondola units can joined together into shelving runs to form aisles.

Keys and Beneﬁts

– Easy to assemble and adjust,no nuts and bolts involved
– The shelves are adjustable both in height and angle to maximise storage and display your products at their best.
– White or black steel construction with high load capacity
– Our gondola units come in a variety of heights and widths to ﬁt your available space.
Ideal for place at the center of your shop ﬂoor to help divide the store and create aisles.
– Choice of Flatboard or Pegboard back panels for hanging items.
– Wide range of accessories available such us dividers, hooks and more available.
– We stock all shelving components for immediate availability.

FILL THE FORM BELOW AND WE WILL PREPARE AN OFFER FOR YOU

PERSONAL DETAILS

Full Name

Phone Number

City

COLOR

Please choose a color option

Choose option:

LENGTH

When measuring up allow an extra 5cm per gondola bay or gondola bay run.

For example, a 100cm shelving bay will take up 105cm.

This is because the 100cm back panel and shelf is attached to the middle of the post.

Each post at either gondola shelving unit or run bays extends as extra 2.5cm, making 5 cm in total.

If you need only one unit less than 140cm long then choose one of these options:

Choose length:

Need wall shelving run bay more than 140cm?

Units can be combined to achieve the overall run length required.

Please write below the maximum length needed

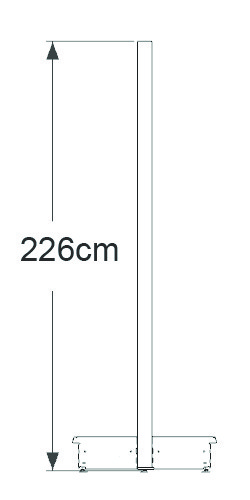

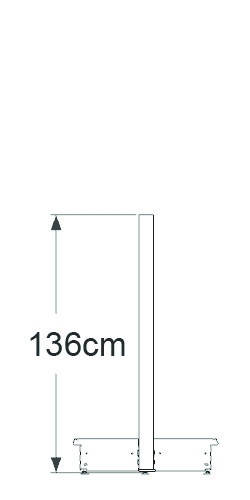

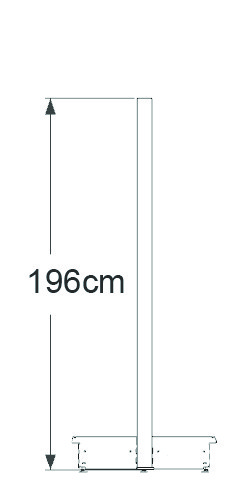

HEIGHT

The height of the gondola units should be selected by a number of factors such us: lower units can improve surveillance, taller units can display more products and achieve a larger product range.

The height you select includes the upright and all necessary pegboard or ﬂatboard back panels on both sides.

Choose option:

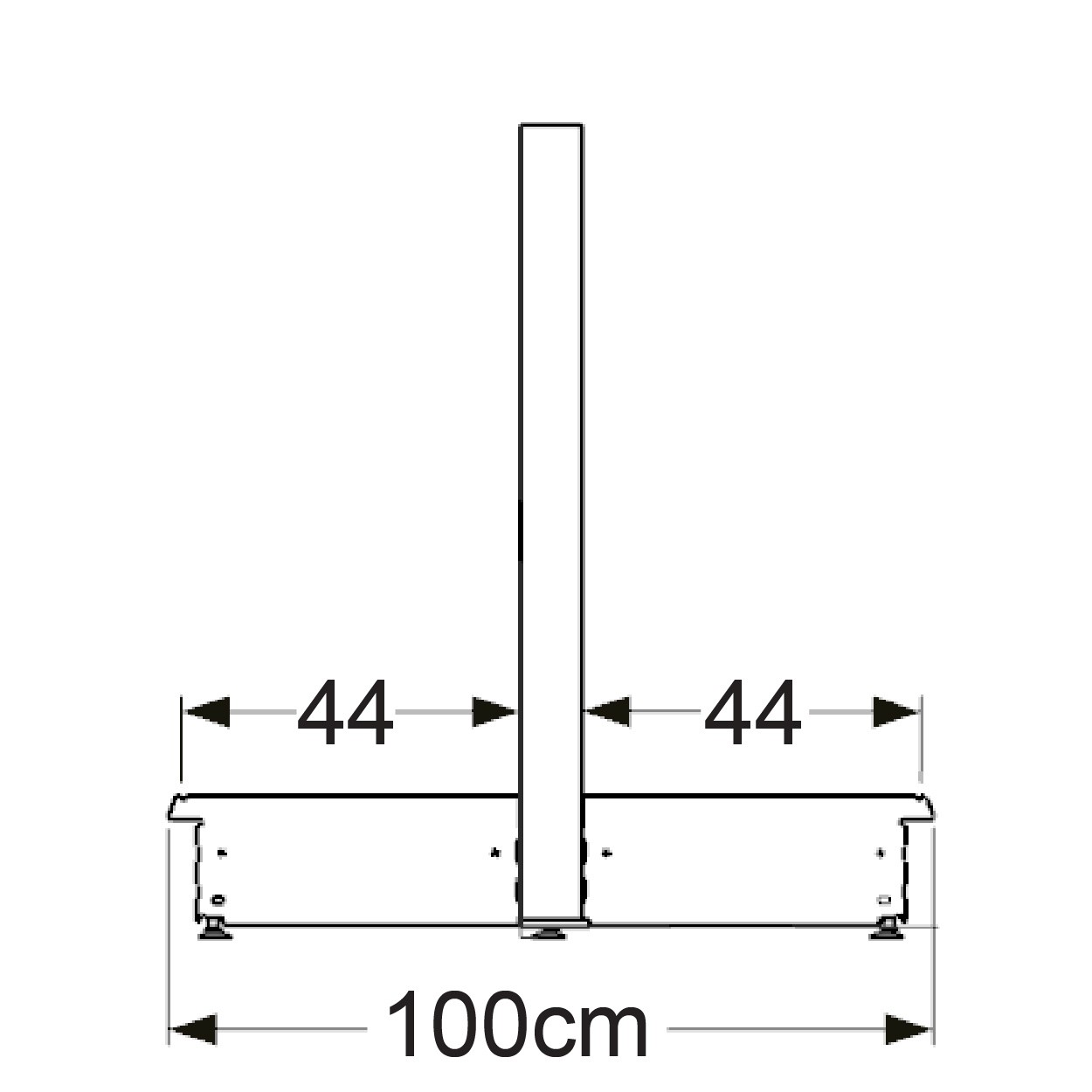

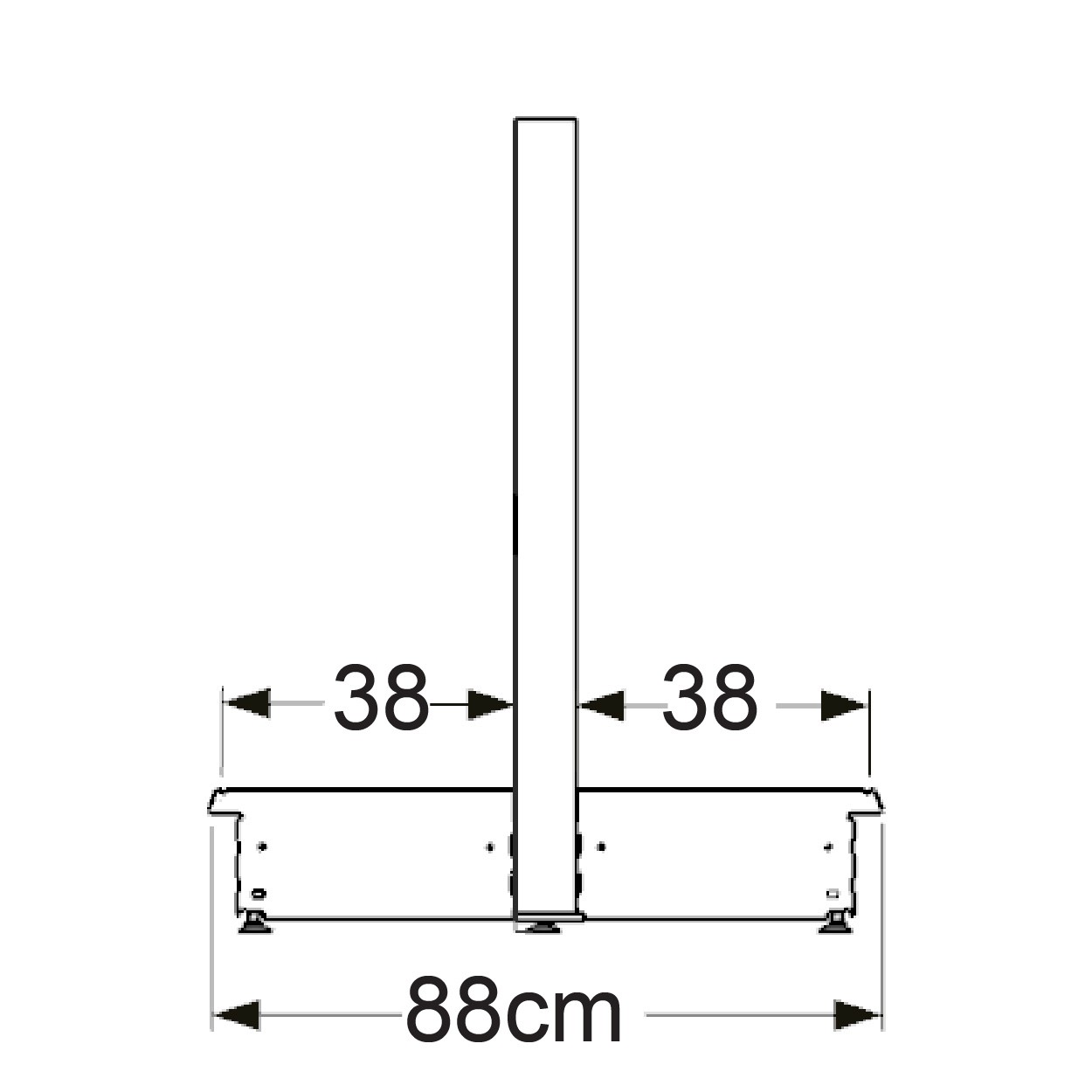

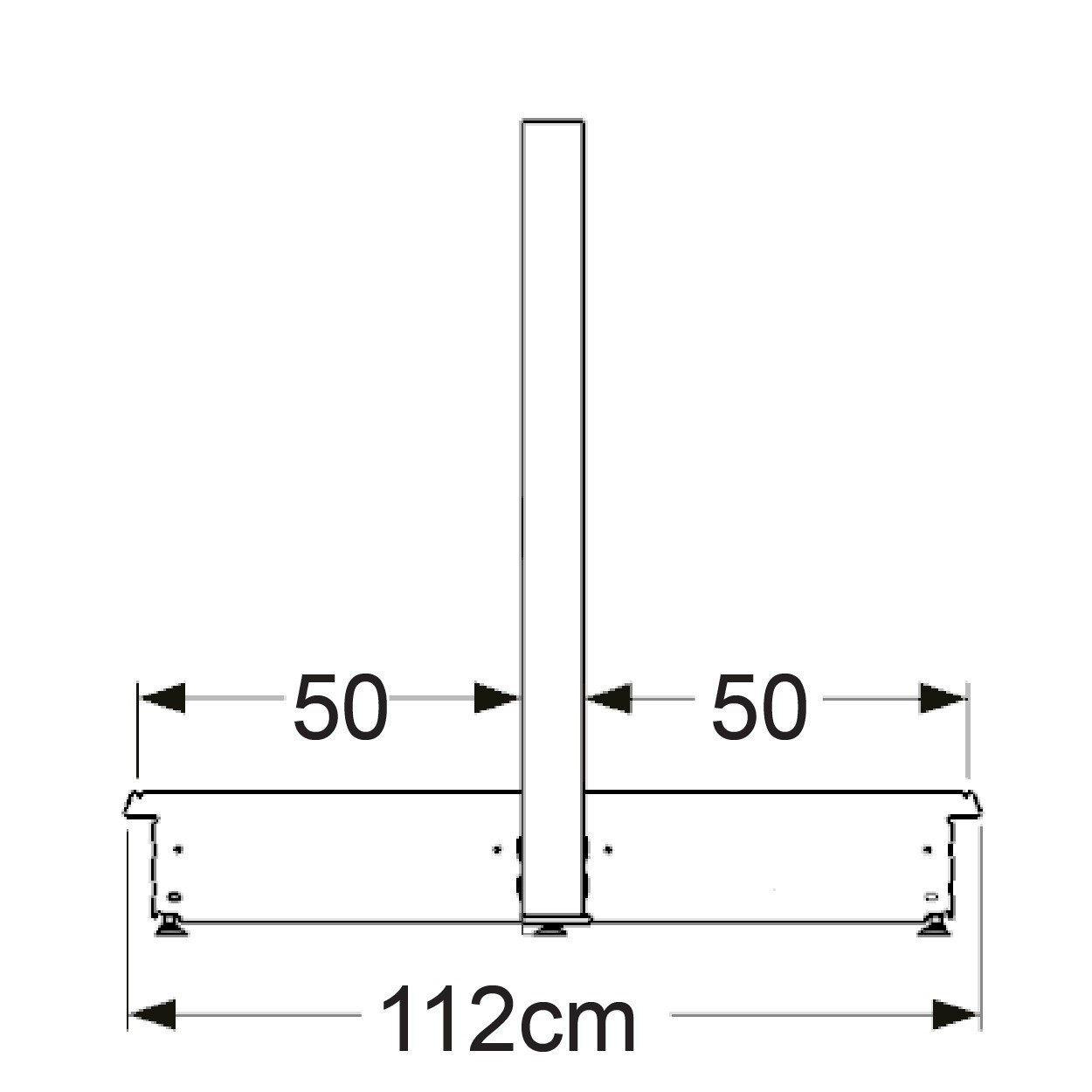

BASE LEG & SHELF DEPTH

The depth of the shelves should be determinated on the product requirements such us large products or the size of the shop. Select the useful shelf depth to meet your needs. Please allow an additional 12cm for the gondola overall depth of the upright and legs when measuring up.

Choose option:

AMOUNT OF SHELVES

Select number of shelves including base shelf. We recommend base and upper shelves have the same size to maximise the amount of products on display. Each upper shelf comes with a pair of brackets. There is no limit to the number you can order per shelving bay or per shelving run.

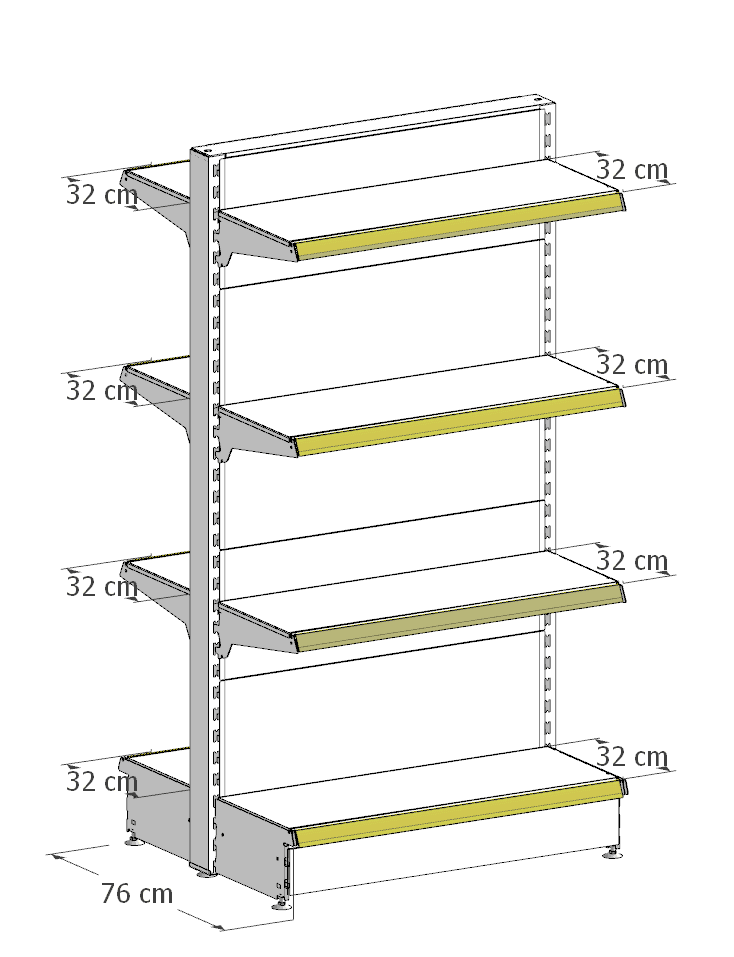

Example: Gondola unit with 4 shelves 32cm deep at each side. Bay Overall depth 76cm
